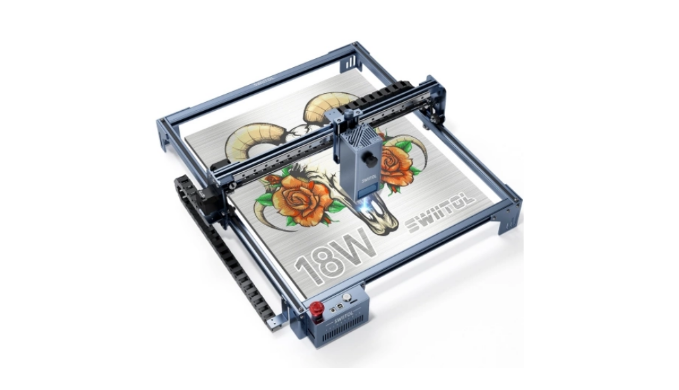

Swiitol C18 Pro 18W Laser Engraver 30000mm/min High Speed 0.01mm High Precision - Posted 337 days ago

Features:
♦ High-speed engraving, speed increased by 2 times: Using the latest technology, high-speed engraving of 30000mm/min can be achieved, speed increased by 2 times. Whether you are in the manufacturing industry or an individual user, our products can meet your needs, improve work efficiency and shorten production time.
♦ Brand-new structure: Using linear slide rail + tank chain design to enhance structural accuracy and optimize the wiring harness arrangement, thereby improving product accuracy and stability. This design can also reduce machine noise and vibration, providing a better working environment. The large engraving area of 400x400mm can meet your various engraving needs.
♦ Leading cutting ability: Using a new 50mm long focal length light source, leading cutting ability. Not only can cutting efficiency be improved, but cutting quality and precision can also be enhanced. This C18 Pro laser engraver is also able to support multi-color engraving on the stainless steel metal, perfect for professionals to explore and try.
♦ Brand new focusing device, which can adjust the focus more accurately: Equipped with a new focusing device, it can adjust the focus more accurately. This design not only improves cutting quality, but also makes cutting easier and more convenient. In addition, our focusing units can accommodate materials of different thicknesses.
♦ Second generation APP control: Use the second generation APP control, including cutting model material library, rich design functions and stable connection control. This design allows users to operate the laser cutting machine more conveniently, improving work efficiency and cutting quality.
♦ Broad compatibility: Equipped with a 32-bit motherboard, it can handle more stream units, process data faster, and greatly improve work efficiency. The machine is compatible with various mature engraving software, such as LaserGRBL and LightBurn. It supports Win XP / Win 7 / Win 8 / XP / Win 10. It also supports MAc system (LightBurn) and engraving file format support. NC, BMP, JPG, PNG, DXF, etc.
♦ Upgraded dual compression spot coupling technology: the ultra-fine laser focus area is reduced to 0.08*0.08mm. The high-density laser can easily cut 18mm Paulownia wood, 11mm thick black acrylic and 6mm MDF by multiple cuts; it can directly engrave mirror stainless steel For metal, ceramics, glass, etc., the engraving & cutting speed is 40% higher than that of the non-spot compression model, which is comparable to the effect of a 90W CO₂ laser engraving machine.
♦ Integrated screw rod: The machine uses an integral screw rod instead of a combined coupling. The stepper motor and screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.
♦ New filter eye protection design: The panoramic filter protector protects your eyes very well, filtering 97% of ultraviolet light. You and the people around you do not need to wear goggles to watch laser engraving. Reduce your goggle expense and inconvenience of wearing goggles.

Specification:
Model: C18 Pro
Engraving ruler: 400x400mm
Electric power: 90W
Laser output optical power: 15-18W
Laser wave: 455 ±5 nm
Engraving accuracy: 0.01mm
Engraving Speed: Max. 30000mm/min (Ideal speed: 24000mm/min)
Net weight of equipment: 4.6kg
Data transmission type: USB connection
Focusing type: fixed focus laser, no focusing
Operating software: LaserGRBL, LightBurn for with Win XP/Win 7/Win 8/XP/Win 10 system; Lightburn for  MAC OS
APP: BURNLAB compatible with iOS and Android

Product material: circuit board V/PWM modulation board
Wire: 22#2P2.54 terminal reverse wire 80mm
Optical lens: φ6/glass
Fan: 12V
Laser beam pattern: spot
Spot size: 0.08×0.08mm
Working mode: pulse working
Working hours: 10000H
Working temperature: 0℃~70℃
Storage temperature: -40℃~85℃
Sintering temperature: 800℃

Carving materials: basswood, pine, paulownia, plywood, yellow peach, mahogany, density board, kraft paper, non-transparent acrylic board, resin, rock board, ceramics, leaves, bamboo, cardboard, plastic, leather, PCB version, alumina, Non-reflective electroplated and painted metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;
Cutting materials: kraft paper, hardwood, paulownia, basswood, pine, softwood, bamboo chips less than 3MM, low-density foam board, non-transparent acrylic board, ABS, PP and other boards less than 3MM thick, cardboard, non-woven fabric, wood board, acrylic, Some thin plastic sheets, sponges;
Supported file formats: NC, BMP, JPG, PNG, DXF
Power supply: 100-240V AC, 50/60HZ Output: 12V 5A

Packing List:
1×Mounting screw
1× tool kit
4×foam foot pads
3×acrylic sheets
3×wood chips
1×desiccant
1×Brush
1×dust-free cloth
1×power adapter
1×Instruction Manual
1×data cable
1×laser module
1×X-axis assembly
1×Y axis left profile
1×Y axis right profile
1×base upper profile
1×base lower profile
3×foot bracket

Precautions:
●Please read the user manual carefully before operating the laser engraving machine.
●When operating the laser engraving machine, please install the laser protective cover; if it is not installed properly, you need to wear goggles.
●Do not touch the laser with your hands, otherwise your hands may be burned.
●Please avoid strong impact on the machine.
●Children under 14 years old are prohibited from using this product. Children over 14 years old require adult supervision.
●The laser cannot be applied directly to any specular reflective object, which may cause injury to the operator or burn the laser. “
